Camera and Movement¶

How do we move and rotate a 3D camera? This is essential for creating an interactive 3D experience where the user can explore the scene.

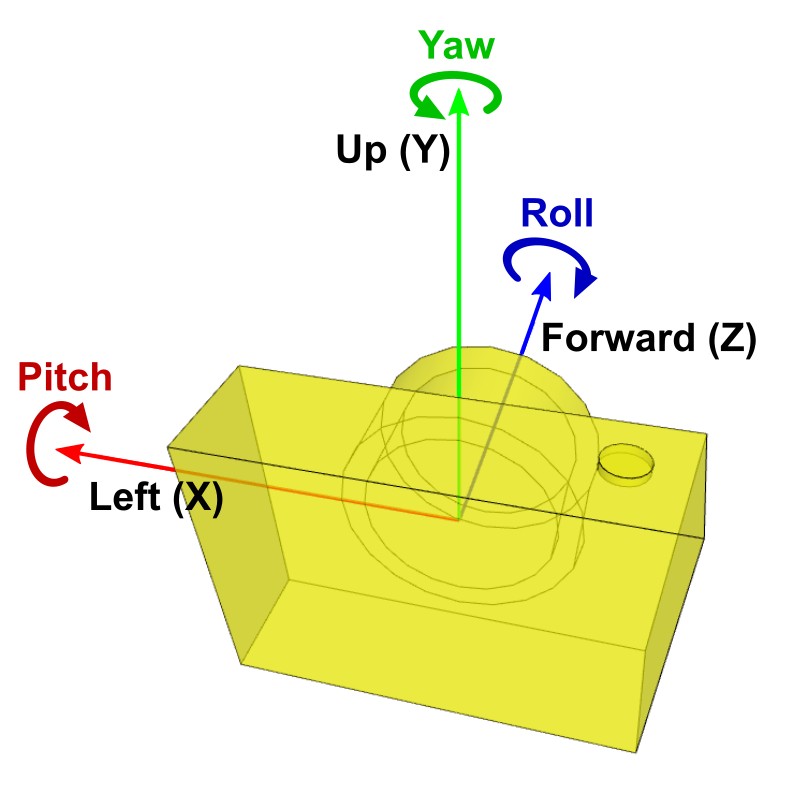

Camera Diagram

Camera Orientation: Yaw and Pitch¶

A 3D camera has several rotational degrees of freedom:

Yaw: Rotation around the Y-axis (vertical) — turns the camera left and right
Pitch: Rotation around the X-axis (horizontal) — tilts the camera up and down
Roll: Rotation around the Z-axis (forward) — we'll ignore this for now

In this rasterizer, we use yaw and pitch to control camera orientation, giving us a first-person camera system.

Understanding Yaw Rotation¶

Let's start with yaw — the horizontal rotation that turns the camera left and right.

The Unit Circle View¶

When we rotate around the Y-axis, the Y coordinate doesn't change (height stays the same). We're only rotating in the XZ plane.

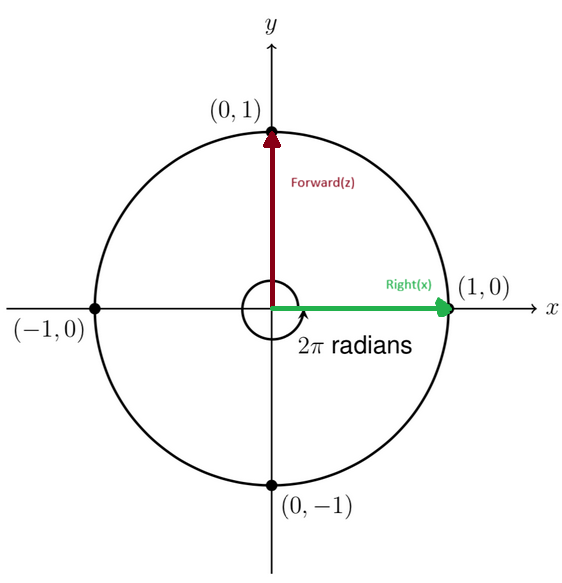

Unit Circle XZ Plane

Looking down from above (the XZ plane), we can think of this as a unit circle:

The right vector starts at \((1, 0, 0)\) — pointing in the \(+X\) direction
The forward vector starts at \((0, 0, 1)\) — pointing in the \(+Z\) direction

Rotating by Angle θ¶

If we rotate these vectors by an angle \(\theta\) (yaw):

Right vector becomes: \((\cos\theta, y, \sin\theta)\)
Forward vector becomes: \((-\sin\theta, y, \cos\theta)\)

Applying to Any Point¶

For a general 3D point \((x, y, z)\) rotated by yaw angle \(\theta\):

\[ \begin{aligned} x' &= \cos(\theta) \cdot x + \sin(\theta) \cdot z \\ y' &= y \\ z' &= -\sin(\theta) \cdot x + \cos(\theta) \cdot z \end{aligned} \]

Key insight: The Y component stays unchanged because yaw only rotates around the Y-axis.

Rotation Matrices¶

We can represent this rotation more compactly using matrix notation.

Expressing Points as Column Vectors¶

A 3D point \((x, y, z)\) can be written as a column vector:

\[ \mathbf{v} = \begin{bmatrix} x \\ y \\ z \end{bmatrix} \]

Yaw Rotation Matrix¶

The yaw rotation can be expressed as a \(3 \times 3\) matrix:

\[ R_y(\theta) = \begin{bmatrix} \cos\theta & 0 & \sin\theta \\ 0 & 1 & 0 \\ -\sin\theta & 0 & \cos\theta \end{bmatrix} \]

Matrix-vector multiplication gives the same result as our formulas:

\[ \begin{bmatrix} x' \\ y' \\ z' \end{bmatrix} = R_y(\theta) \cdot \begin{bmatrix} x \\ y \\ z \end{bmatrix} \]

Expanding this multiplication:

\[ \begin{bmatrix} x' \\ y' \\ z' \end{bmatrix} = \begin{bmatrix} \cos\theta \cdot x + \sin\theta \cdot z \\ y \\ -\sin\theta \cdot x + \cos\theta \cdot z \end{bmatrix} \]

This matches our rotation formulas exactly!

Pitch Rotation Matrix¶

Using the same technique for pitch (rotation around the X-axis), we get:

\[ R_x(\phi) = \begin{bmatrix} 1 & 0 & 0 \\ 0 & \cos\phi & -\sin\phi \\ 0 & \sin\phi & \cos\phi \end{bmatrix} \]

Where \(\phi\) is the pitch angle.

Combined Camera Rotation¶

To represent the full camera orientation, we combine both rotations into a single matrix.

The Camera Rotation Matrix¶

\[ R_{cam} = R_y(\text{yaw}) \times R_x(\text{pitch}) \]

Important: The order matters! Matrix multiplication is not commutative:

\[ R_y \times R_x \neq R_x \times R_y \]

We apply yaw first, then pitch. This matches the intuitive behavior of a first-person camera.

Extracting Camera Axes¶

The resulting \(R_{cam}\) matrix has a useful property: its columns represent the camera's local coordinate axes:

\[ R_{cam} = \begin{bmatrix} | & | & | \\ \text{right} & \text{up} & \text{forward} \\ | & | & | \end{bmatrix} \]

1st column: Right vector (camera's local X-axis)
2nd column: Up vector (camera's local Y-axis)
3rd column: Forward vector (camera's local Z-axis)

These vectors tell us which direction the camera is facing in world space.

Free-Fly Movement¶

Now that we have the camera's orientation, we can implement movement.

Extracting Direction Vectors¶

From the camera rotation matrix \(R_{cam}\), we extract:

local right   = { Rcam[1][1], Rcam[2][1], Rcam[3][1] }  -- 1st column
local forward = { Rcam[1][3], Rcam[2][3], Rcam[3][3] }  -- 3rd column

Movement Update¶

To move the camera in a direction, we update its position:

Moving forward:

\[ \begin{aligned} cam_x &= cam_x + forward_x \cdot speed \cdot \Delta t \\ cam_y &= cam_y + forward_y \cdot speed \cdot \Delta t \\ cam_z &= cam_z + forward_z \cdot speed \cdot \Delta t \end{aligned} \]

Strafing right:

\[ \begin{aligned} cam_x &= cam_x + right_x \cdot speed \cdot \Delta t \\ cam_y &= cam_y + right_y \cdot speed \cdot \Delta t \\ cam_z &= cam_z + right_z \cdot speed \cdot \Delta t \end{aligned} \]

Where \(\Delta t\) is the time elapsed since the last frame (delta time).

Free-Fly Mode¶

This gives us free-fly movement — the camera can move in any direction, including up and down. It's not locked to the ground plane like a walking character would be.

For example, if you pitch the camera upward and press forward, you'll fly upward into the sky!

Point Transformation Before Projection¶

Before we can project a 3D point to the screen, we need to transform it into camera space.

Step 1: Translate to Camera-Relative Coordinates¶

First, express the point relative to the camera's position:

\[ \mathbf{p}_{rel} = \mathbf{p}_{world} - \mathbf{cam.pos} \]

This moves the camera to the origin \((0, 0, 0)\).

Step 2: The Naive Approach (Doesn't Work!)¶

You might think we should rotate the point using \(R_{cam}\):

\[ \mathbf{p}_{camera} = R_{cam} \times \mathbf{p}_{rel} \quad \text{❌ WRONG!} \]

Why doesn't this work?

When the camera moves to the right, objects in the scene should appear to move left on the screen. Similarly, when the camera looks up, objects should move down on screen.

The world rotates in the opposite direction of the camera!

Step 3: The Correct Approach — Inverse Rotation¶

We need to multiply by the inverse of the camera rotation:

\[ \mathbf{p}_{camera} = R_{cam}^{-1} \times \mathbf{p}_{rel} \]

Key property: For rotation matrices, the inverse equals the transpose:

\[ R_{cam}^{-1} = R_{cam}^T \]

This is because rotation matrices are orthogonal (their columns are perpendicular unit vectors).

The Complete Transformation¶

Putting it together:

\[ \mathbf{p}_{camera} = R_{cam}^T \times (\mathbf{p}_{world} - \mathbf{cam.pos}) \]

Remember: The order of operations matters! We translate first, then rotate.

Complete Algorithm¶

Here's how the full camera transformation works in code:

-- Step 1: Build the camera rotation matrices
local function build_cam_mats()
  local Ry = rota_y(cam.yaw)         -- Yaw rotation matrix
  local Rx = rota_x(cam.pitch)       -- Pitch rotation matrix
  local Rcam = mat3_mul(Ry, Rx)      -- Combined: Rcam = Ry × Rx
  local RcamT = transpose(Rcam)      -- Inverse rotation (transpose)
  return Rcam, RcamT
end

-- Step 2: Extract movement directions
local Rcam, RcamT = build_cam_mats()
local right   = { Rcam[1][1], Rcam[2][1], Rcam[3][1] }
local forward = { Rcam[1][3], Rcam[2][3], Rcam[3][3] }

-- Step 3: Update camera position based on input
local speed = 1.5
if love.keyboard.isDown("w") then
  cam.pos.x = cam.pos.x + forward[1] * speed * dt
  cam.pos.y = cam.pos.y + forward[2] * speed * dt
  cam.pos.z = cam.pos.z + forward[3] * speed * dt
end

-- Step 4: Transform world point to camera space
local function transform_to_camera_space(point_world, cam, RcamT)
  -- Translate to camera-relative coordinates
  local rel = {
    point_world[1] - cam.pos.x,
    point_world[2] - cam.pos.y,
    point_world[3] - cam.pos.z
  }

  -- Apply inverse camera rotation (transpose)
  local point_camera = mat3_vec(rel, RcamT)

  return point_camera
end

-- Step 5: Project to screen (from previous chapter)
local function project_to_screen(point_camera, fov, width, height)
  local x, y, z = point_camera[1], point_camera[2], point_camera[3]

  if z <= 0.001 then return nil end  -- Behind camera

  local f = (height / 2.0) / math.tan(math.rad(fov) / 2.0)
  local x_proj = f * (x / z)
  local y_proj = f * (y / z)

  local x_screen = x_proj + (width / 2.0)
  local y_screen = (height / 2.0) - y_proj

  return x_screen, y_screen
end

Summary¶

The camera transformation pipeline:

Build rotation matrices from yaw and pitch angles
Combine them: \(R_{cam} = R_y(\text{yaw}) \times R_x(\text{pitch})\)
Extract direction vectors from \(R_{cam}\) columns for movement
Transform points to camera space: \(R_{cam}^T \times (\mathbf{p}_{world} - \mathbf{cam.pos})\)
Project to screen using perspective projection

Key insights:

Yaw rotates around Y-axis (left/right)
Pitch rotates around X-axis (up/down)
Matrix columns give us the camera's local axes (right, up, forward)
We use the transpose (inverse) of \(R_{cam}\) to transform points correctly
Matrix multiplication order matters

With this camera system, we can now freely navigate our 3D scene and view it from any angle!

Next: We'll explore the Z-buffer algorithm for correctly sorting overlapping triangles by depth.
