Basics of 3D Projection¶

How do we project a 3D point onto a 2D screen? This is the fundamental question that every 3D renderer must answer.

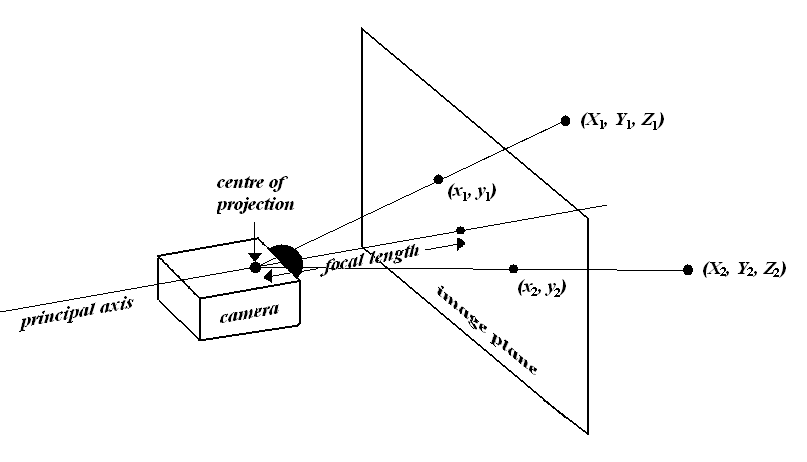

Perspective Projection Diagram

The Projection Problem¶

We have: - A camera at position \((c_x, c_y, c_z)\) - A 3D point in world space at \((x_1, y_1, z_1)\) - A 2D screen (image plane) where we want to draw

Our goal: Find the 2D coordinates \((x_{screen}, y_{screen})\) where this 3D point appears on the screen.

The Perspective Projection Model¶

In perspective projection, we simulate how a real camera works:

Light from a 3D point travels through a projection center (the camera)
It intersects with an image plane (the screen)
Where it intersects is where we draw the pixel

Key Components¶

Projection Center: The camera position (a single point in 3D space)
Image Plane: The virtual screen positioned at distance \(f\) from the camera
Focal Length (\(f\)): The distance from the camera to the image plane
Field of View (FOV): How "wide" the camera can see (measured in degrees)

Note: Traditional graphics use a near plane and far plane for clipping, but in our implementation, we use the near plane as our image plane for simplicity.

Field of View (FOV)¶

The FOV determines how much of the scene the camera can see:

Narrow FOV (e.g., 30°): Telephoto lens, zoomed in, little distortion
Normal FOV (e.g., 60°): Human-like vision
Wide FOV (e.g., 90°+): Wide-angle lens, fisheye effect

Relationship: The FOV and focal length are inversely related—wider FOV means shorter focal length.

Step 1: Transform to Camera Space¶

Before projection, we must move the camera to the origin \((0, 0, 0)\). This simplifies the math.

World Space → Camera Space¶

For a 3D point \((x_{world}, y_{world}, z_{world})\) and camera at \((c_x, c_y, c_z)\):

\[ \begin{aligned} x_{rel} &= x_{world} - c_x \\ y_{rel} &= y_{world} - c_y \\ z_{rel} &= z_{world} - c_z \end{aligned} \]

Now the point is expressed relative to the camera, which we treat as the origin.

Step 2: Calculate Focal Length¶

The focal length (\(f\)) is computed from the FOV and screen dimensions.

The Formula¶

For the vertical axis:

\[ \tan\left(\frac{FOV}{2}\right) = \frac{height / 2}{f} \]

Solving for \(f\):

\[ f = \frac{height / 2}{\tan(FOV / 2)} \]

Why This Works¶

At distance \(f\) from the camera, the image plane has height exactly equal to height pixels
The FOV determines the viewing angle, which relates to the ratio \(\frac{height}{f}\)
Larger FOV → smaller \(f\) → more distortion (wide angle)
Smaller FOV → larger \(f\) → less distortion (telephoto)

Horizontal Focal Length¶

To maintain aspect ratio, we set:

\[ f_x = f_y = f \]

This ensures circles stay circular and squares stay square.

Step 3: Project to Screen Coordinates¶

Now we apply the perspective division—the heart of perspective projection.

The Projection Formulas¶

For a 3D point \((x_{rel}, y_{rel}, z_{rel})\) in camera space:

\[ \begin{aligned} x_{proj} &= f \times \frac{x_{rel}}{z_{rel}} \\ y_{proj} &= f \times \frac{y_{rel}}{z_{rel}} \end{aligned} \]

Key insight: We divide by \(z\)! This is why distant objects appear smaller—larger \(z\) makes the result smaller.

Why Division by Z?¶

Consider two points at the same \(x\) but different depths:

Point A: \((x=1, z=2)\) → \(x_{proj} = f \times \frac{1}{2} = 0.5f\)
Point B: \((x=1, z=4)\) → \(x_{proj} = f \times \frac{1}{4} = 0.25f\)

Point B is twice as far, so it appears half the size—this is perspective!

Step 4: Convert to Pixel Coordinates¶

The projected coordinates \((x_{proj}, y_{proj})\) are centered at the optical center of the camera, where \((0, 0)\) is the middle of the screen.

But in screen coordinates, \((0, 0)\) is the top-left corner. We need to shift:

\[ \begin{aligned} x_{screen} &= x_{proj} + \frac{width}{2} \\ y_{screen} &= \frac{height}{2} - y_{proj} \end{aligned} \]

Note the minus sign for \(y\)! In camera space, \(+y\) points up. In screen space, \(+y\) points down.

Complete Projection Algorithm¶

Putting it all together:

function project_point_to_screen(point_world, camera, fov, width, height)
    -- Step 1: Transform to camera space
    local x_rel = point_world.x - camera.x
    local y_rel = point_world.y - camera.y
    local z_rel = point_world.z - camera.z

    -- Step 2: Calculate focal length
    local fov_rad = math.rad(fov)
    local f = (height / 2.0) / math.tan(fov_rad / 2.0)

    -- Step 3: Project (perspective division)
    local x_proj = f * (x_rel / z_rel)
    local y_proj = f * (y_rel / z_rel)

    -- Step 4: Convert to screen coordinates
    local x_screen = x_proj + (width / 2.0)
    local y_screen = (height / 2.0) - y_proj

    return x_screen, y_screen
end

Important Edge Cases¶

Points Behind the Camera¶

If \(z_{rel} \leq 0\), the point is behind the camera and should not be drawn.

We use a near plane threshold:

local near = 0.001
if z_rel > near then
    -- Safe to project
else
    -- Discard (behind camera or too close)
end

Points Outside Screen¶

After projection, check if the point is visible:

if x_screen >= 0 and x_screen < width and
   y_screen >= 0 and y_screen < height then
    -- Point is on screen
end

Summary¶

Perspective projection in 4 steps:

Transform to camera space: Subtract camera position
Calculate focal length: From FOV and screen size
Perspective division: Divide by \(z\) to get projected coordinates
Convert to pixels: Shift origin from center to top-left corner

The key insight: Division by \(z\) creates perspective—distant objects appear smaller because we divide by a larger number.

Next: We'll use this projection to build a complete 3D rasterizer with camera controls!
