Simple Rasterization in LOVE¶

The goal of this tutorial is to draw a simple triangle using rasterization in LÖVE2D. We'll build everything from scratch to understand how pixels are actually drawn on screen.

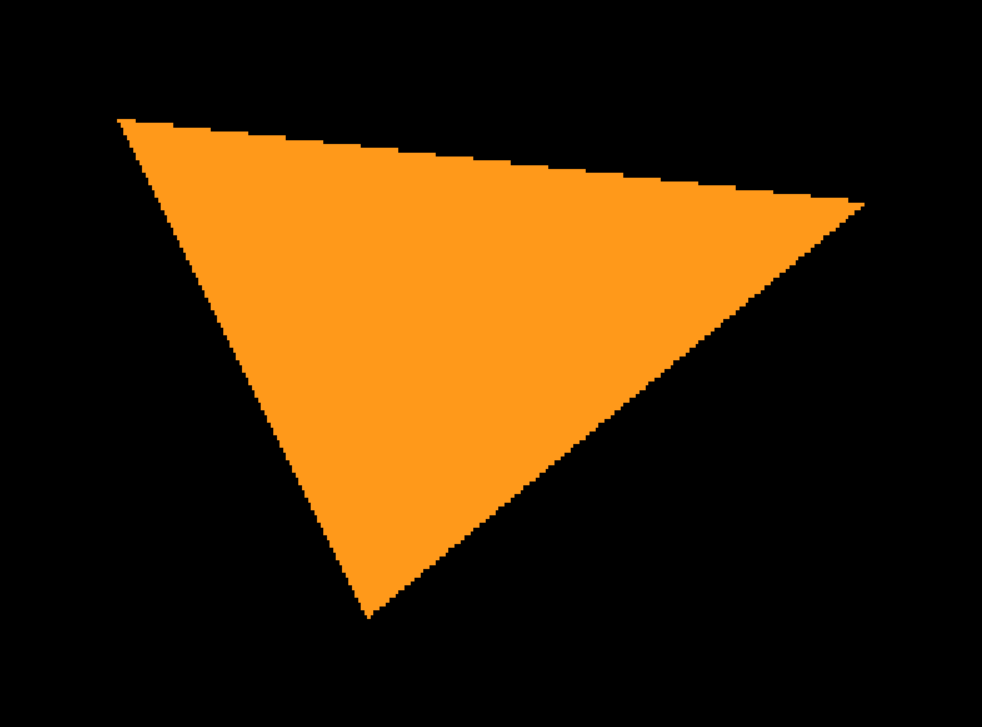

Triangle Result

Part 1: Creating the Software Buffer¶

Before we can draw anything, we need a place to store pixel data. In LÖVE2D, we'll create a software framebuffer using ImageData:

local W, H = 320, 180
local imgData, img

function love.load()
    imgData = love.image.newImageData(W, H)
    img     = love.graphics.newImage(imgData)
    img:setFilter("nearest", "nearest")

    -- Clear to black
    imgData:mapPixel(function() return 0, 0, 0, 1 end)
end

What's happening here?¶

imgData: This is the buffer—think of it as a box that stores the color of every pixel (320×180 = 57,600 pixels)
img: This is the representation of that buffer that LÖVE can display on screen
setFilter("nearest", "nearest"): Prevents blurring when scaling up
mapPixel: Sets all pixels to black (RGB: 0,0,0, Alpha: 1)

The buffer is where we'll manually write pixels. Once we're done, we'll tell LÖVE to update the image with img:replacePixels(imgData).

Part 2: Defining the Triangle¶

Let's define a triangle with 3 vertices:

local p1 = { 40,  30 }   -- Top-left
local p2 = { 280, 50 }   -- Top-right
local p3 = { 120, 150 }  -- Bottom

The Challenge: Drawing All Pixels Inside¶

How do we know which pixels are inside the triangle? We can't just draw the edges—we need to fill the entire interior.

The answer: Vector mathematics and CCW (Counter-Clockwise) winding order.

Mathematical Foundation¶

Key insight: A point \(P\) is inside a convex polygon if and only if it lies on the same side of all edges.

For a triangle with vertices ordered counter-clockwise \((v_1, v_2, v_3)\):

Point \(P\) is inside if it's to the right of edge \(v_1 \to v_2\)
And to the right of edge \(v_2 \to v_3\)
And to the right of edge \(v_3 \to v_1\)

But how do we determine "left" vs "right"? We use the 2D cross product (also called the edge function).

The Edge Function¶

For an edge from \((x_0, y_0)\) to \((x_1, y_1)\) and a test point \((x, y)\):

\[ E(x, y) = (x - x_0)(y_1 - y_0) - (y - y_0)(x_1 - x_0) \]

This formula computes the signed area of the parallelogram formed by vectors \((P - P_0)\) and \((P_1 - P_0)\).

Interpretation:

\(E(x, y) > 0\) → Point is to the left of the edge
\(E(x, y) < 0\) → Point is to the right of the edge
\(E(x, y) = 0\) → Point is on the edge

Interesting property: \(E(x, y)\) equals twice the area of triangle \((P_0, P_1, P)\)!

\[ \text{Area}(\triangle P_0 P_1 P) = \frac{|E(x, y)|}{2} \]

Part 3: The Edge Function Implementation¶

local function edge(x0, y0, x1, y1, x, y)
    return (x - x0)*(y1 - y0) - (y - y0)*(x1 - x0)
end

This simple function is the heart of rasterization. It tells us:

Whether a point is inside the triangle
The barycentric coordinates for interpolation (more on this later)
The signed area of sub-triangles

Part 4: The Clamp Helper Function¶

Before we rasterize, we need a helper to keep coordinates within bounds:

local function clamp(x, a, b)
    if x < a then return a
    elseif x > b then return b
    else return x
    end
end

Why? We don't want to test every pixel on the screen—only those in the triangle's bounding box.

Part 5: Triangle Rasterization Function¶

Now let's build the complete rasterization function step by step:

local function fill_triangle2D(imgData, W, H, p1, p2, p3, color)
    local x1, y1 = p1[1], p1[2]
    local x2, y2 = p2[1], p2[2]
    local x3, y3 = p3[1], p3[2]
    local r, g, b, a = color[1], color[2], color[3], color[4] or 1

Step 1: Calculate Triangle Area¶

    -- Oriented area
    local A = edge(x1, y1, x2, y2, x3, y3)
    if A == 0 then return end  -- Degenerate triangle (collapsed to a line)
    local invA = 1.0 / A

Why store invA (inverse area)?

We'll multiply by invA many times in the inner loop. Multiplication is faster than division, so we pre-compute \(\frac{1}{A}\) once instead of dividing by \(A\) thousands of times.

\[ \frac{E(P)}{A} = E(P) \times \frac{1}{A} \]

Performance impact: In a 320×180 buffer, we might test ~10,000+ pixels. Avoiding division saves significant time!

Step 2: Compute Bounding Box¶

    -- Bounding box
    local minx = clamp(math.floor(math.min(x1, x2, x3)), 0, W-1)
    local maxx = clamp(math.floor(math.max(x1, x2, x3)), 0, W-1)
    local miny = clamp(math.floor(math.min(y1, y2, y3)), 0, H-1)
    local maxy = clamp(math.floor(math.max(y1, y2, y3)), 0, H-1)

Instead of testing all 57,600 pixels in a 320×180 buffer, we only test pixels in the smallest rectangle that contains the triangle. This optimization can save ~98% of pixel tests!

Step 3: Test Each Pixel¶

    -- Iterate over pixels (using pixel center)
    for y = miny, maxy do
        for x = minx, maxx do
            local px, py = x + 0.5, y + 0.5

Why x + 0.5 and y + 0.5?

Pixels are actually squares, not points. Testing at the pixel center (0.5, 0.5) gives more accurate results and matches how GPUs sample.

Pixel at (10, 20):
┌───────┐
│       │
│   •   │  ← We test here (10.5, 20.5)
│       │
└───────┘
 (10,20)

Step 4: Compute Barycentric Coordinates¶

            local w1 = edge(x2, y2, x3, y3, px, py) * invA
            local w2 = edge(x3, y3, x1, y1, px, py) * invA
            local w3 = 1.0 - w1 - w2

These are barycentric coordinates—they express point \(P\) as a weighted combination of the three vertices:

\[ P = w_1 \cdot v_1 + w_2 \cdot v_2 + w_3 \cdot v_3 \]

where \(w_1 + w_2 + w_3 = 1\).

Properties:

\(w_1, w_2, w_3 \in [0, 1]\) → Point is inside the triangle
Any weight \(< 0\) or \(> 1\) → Point is outside

Visual explanation:

       v1
       *
      /|\
   w1/ | \w2
    /  |  \
   /   •P  \     P = w1*v1 + w2*v2 + w3*v3
  /  w3|    \
 *─────|─────*
v3           v2

Step 5: Inside Test and Drawing¶

            if w1>=0 and w2>=0 and w3>=0 then
                imgData:setPixel(x, y, r, g, b, a)
            end

The CCW Rule:

A point is inside the triangle if all three barycentric coordinates are non-negative:

\(w_1 \geq 0\) → Point is to the right of edge \(v_2 \to v_3\)
\(w_2 \geq 0\) → Point is to the right of edge \(v_3 \to v_1\)
\(w_3 \geq 0\) → Point is to the right of edge \(v_1 \to v_2\)

Important: Our triangles must be defined in CCW (counter-clockwise) order for this test to work correctly. If vertices are in CW order, the test will fail and nothing will be drawn.

Part 6: Putting It All Together¶

function love.load()
    love.window.setTitle("2D Triangle - Basic Rasterizer")
    imgData = love.image.newImageData(W, H)
    img     = love.graphics.newImage(imgData)
    img:setFilter("nearest", "nearest")

    -- Clear to black
    imgData:mapPixel(function() return 0, 0, 0, 1 end)

    -- Define triangle (screen coordinates)
    local p1 = { 40,  30 }
    local p2 = { 280, 50 }
    local p3 = { 120, 150 }

    -- Rasterize!
    fill_triangle2D(imgData, W, H, p1, p2, p3, {1, 0.6, 0.1, 1})

    -- Update the image
    img:replacePixels(imgData)
end

function love.draw()
    local winW, winH = love.graphics.getDimensions()
    love.graphics.draw(img, 0, 0, 0, winW/W, winH/H)
end

Execution Flow¶

love.load(): Initialize buffer → Draw triangle → Update image
love.draw(): Display the image scaled to window size

Summary¶

We've built a complete 2D triangle rasterizer using:

Software framebuffer (ImageData) to store pixels
Edge function to test if points are inside the triangle
Barycentric coordinates for precise inside/outside testing
Bounding box optimization to avoid testing every screen pixel
Pixel center sampling for accuracy

This is the fundamental algorithm used in all 3D graphics! GPUs do the exact same thing, just with:

Hardware acceleration (parallel processing)
Depth testing (z-buffer)
Texture mapping
Perspective correction

Next, we'll extend this to 3D by adding projection and depth buffering!
